- Displacement:1.4 mL/rev
- Flow Rate Range:0.6–6L/min
Small Flow. High Pressure. Precise Control.

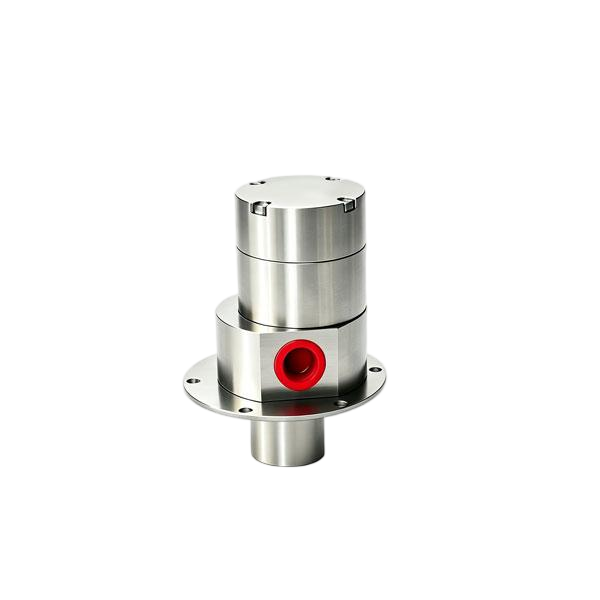

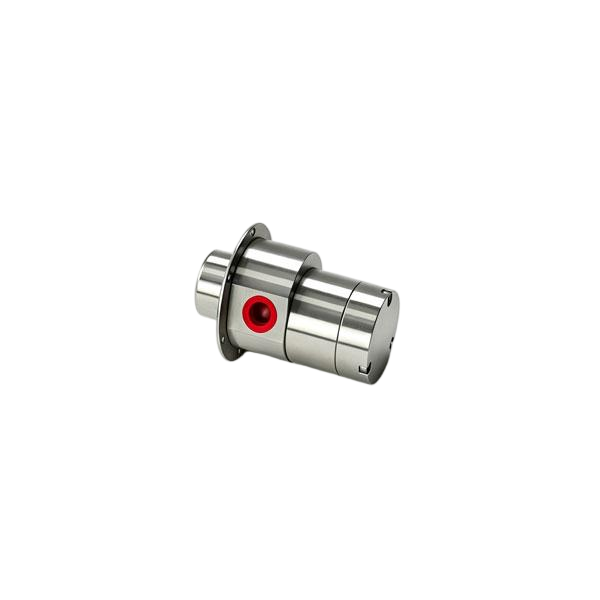

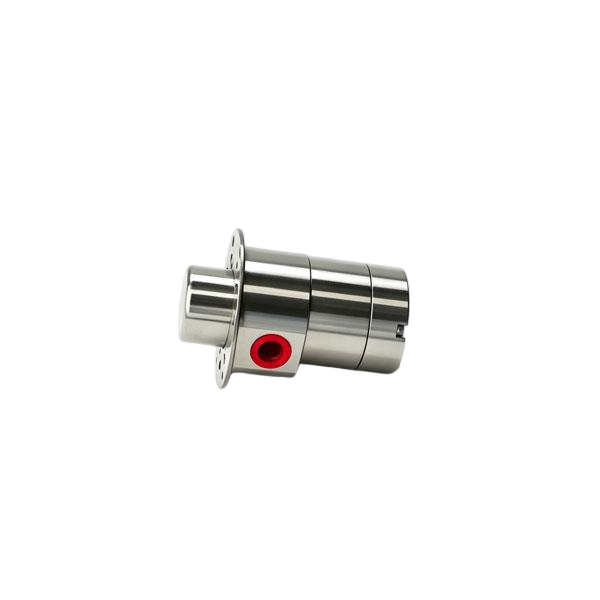

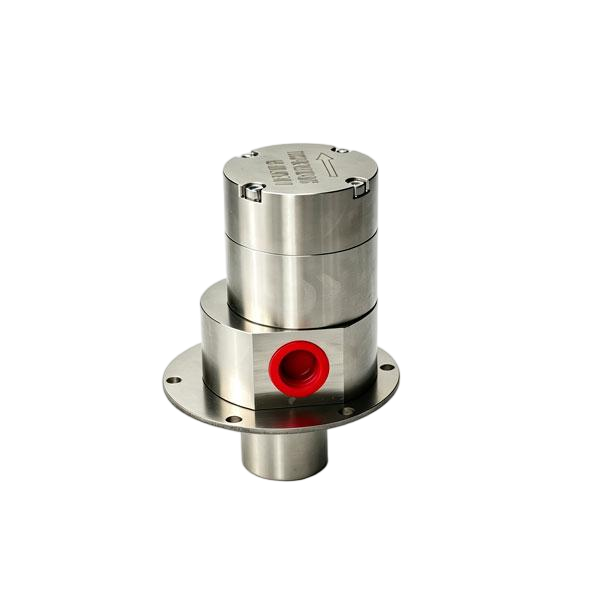

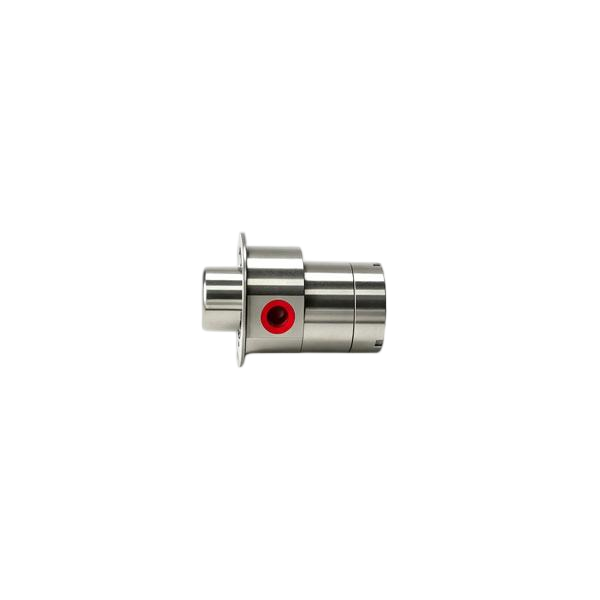

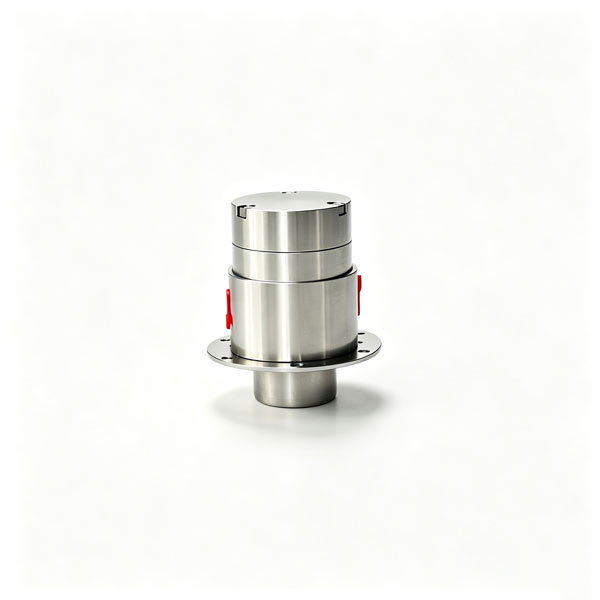

Designed for precision delivery of micro-flow liquids, the magnetic gear pump combines precision gear technology with magnetic drive for stable and controllable fluid output. Compared with conventional pump designs, it offers excellent adaptability under micro-flow, high-pressure and continuous-operation conditions. It is suitable for hydrogen production, lithium batteries, fuel cells, precision instruments, laboratory equipment and other applications where consistent flow performance is critical.
Material
Pump casing：SS316L
Gear：peek
Gear shaft：SS316L or nano-ceramic
Internal magnetic drive：PPS overmolded magnet
Sealing ring：FKM/PTFE/FFKM
Optional Motor Configurations
DC Motors (24V): Brushed Motor, Brushless Motor, Stepper Motor
AC Motors (220V/380V): Three-Phase Motor, Servo Motor
