- Displacement:0.28mL/rev
- Flow Rate Range:0.1–1.2L/min

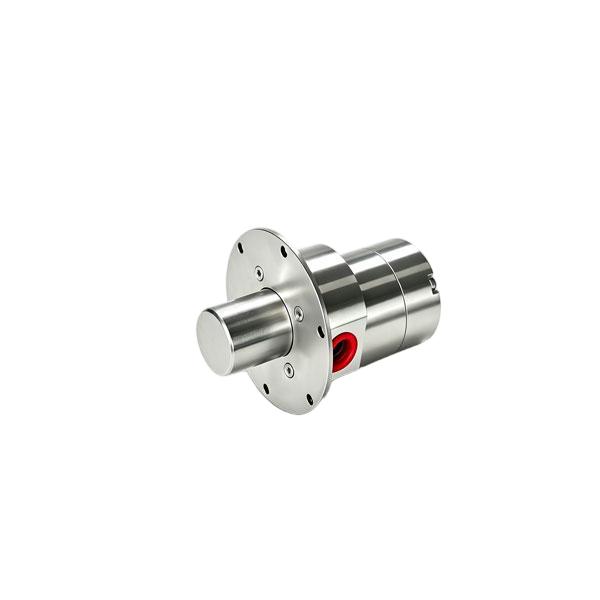

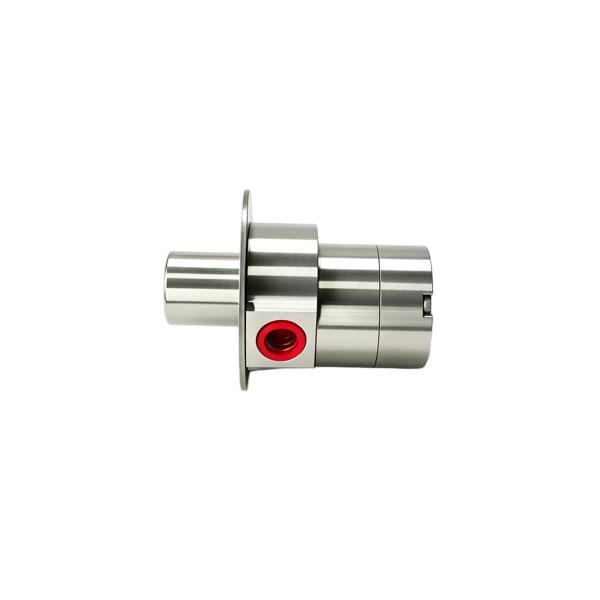

Micro Flow Magnetic Gear Pump — Stable, Precise and Efficient Fluid Transfer
Featuring a magnetic drive design with no dynamic shaft seal, this pump effectively reduces the leakage and wear issues associated with conventional shaft-sealed pumps. Its compact structure enables stable, continuous fluid transfer at low flow rates and high pressures, with excellent flow stability and repeatability. It is ideal for hydrogen production equipment, lithium battery systems, fuel cells, analytical instruments and precision fluid control applications.
Material
Pump casing：SS316L
Gear：peek
Gear shaft：SS316L or nano-ceramic
Internal magnetic drive：PPS overmolded magnet
Sealing ring：FKM/PTFE/FFKM
Optional Motor Configurations
DC Motors (24V): Brushed Motor, Brushless Motor, Stepper Motor
AC Motors (220V/380V): Three-Phase Motor, Servo Motor
