- Displacement:0.35mL/rev
- Flow Rate Range:0.1–1.8L/min
Precise Control of Every Drop for More Stable Micro-Flow Delivery

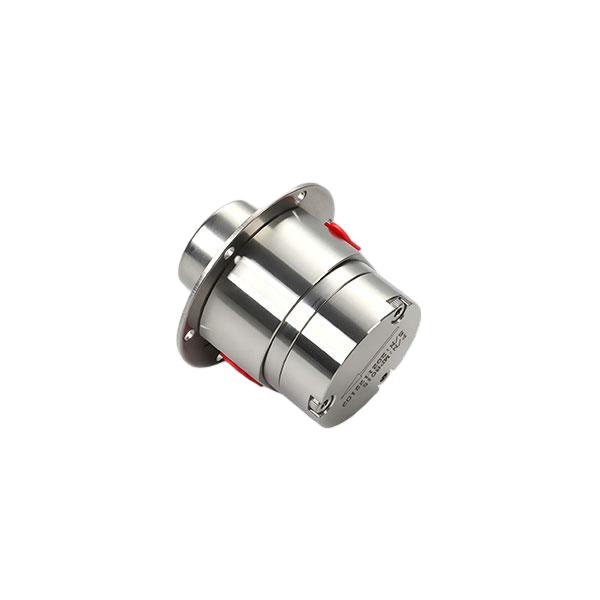

Designed for applications requiring precise low-flow and high-pressure fluid transfer, this magnetic gear pump delivers stable and continuous flow in a compact package. Its magnetic drive eliminates the need for a conventional mechanical shaft seal, reducing the risk of leakage while supporting high-pressure, low-flow and long-term continuous operation. It is an ideal micro-fluid transfer solution for new energy equipment, precision systems and industrial automation.
Material
Pump casing：SS316L
Gear：peek
Gear shaft：SS316L or nano-ceramic
Internal magnetic drive：PPS overmolded magnet
Sealing ring：FKM/PTFE/FFKM
Optional Motor Configurations
DC Motors (24V): Brushed Motor, Brushless Motor, Stepper Motor
AC Motors (220V/380V): Three-Phase Motor, Servo Motor
