- Displacement:5.4mL/rev
- Flow Rate Range:1–15L/min
Stable Micro-Flow Performance for Continuous Operation

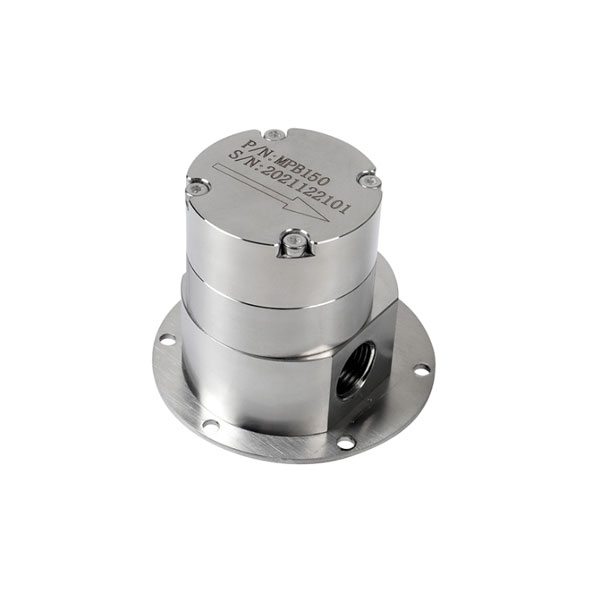

Built for reliable long-term operation, this micro-flow magnetic gear pump delivers a consistent flow even in demanding system conditions. Its precision gear structure enables accurate fluid transfer at low flow rates, while the magnetic drive reduces the risk of leakage associated with traditional shaft seals. It is well suited for equipment requiring stable micro-flow, high pressure and continuous fluid delivery.
Material
Pump casing：SS316L
Gear：peek
Gear shaft：SS316L or nano-ceramic
Internal magnetic drive：PPS overmolded magnet
Sealing ring：FKM/PTFE/FFKM
Optional Motor Configurations
DC Motors (24V): Brushless Motor，Brushed Motor
AC Motors (220V/380V): Three-Phase Motor, Servo Motor
