Magnetic gear pumps are ideal for precision fluid applications where compact size, low leakage, and reliable operation are important. The magnetic drive transmits motor power through a sealed structure, eliminating the need for a traditional shaft seal. Precision gears generate smooth and consistent fluid flow while supporting relatively high pressure in a small package. Depending on customer requirements, pump materials, flow rates, pressure levels, motors, and interfaces can be customized for specific equipment and fluids.
Material
Pump casing：SS316L
Gear：peek
Gear shaft：SS316L or nano-ceramic
Internal magnetic drive：PPS overmolded magnet
Optional Gear Pump Specifications

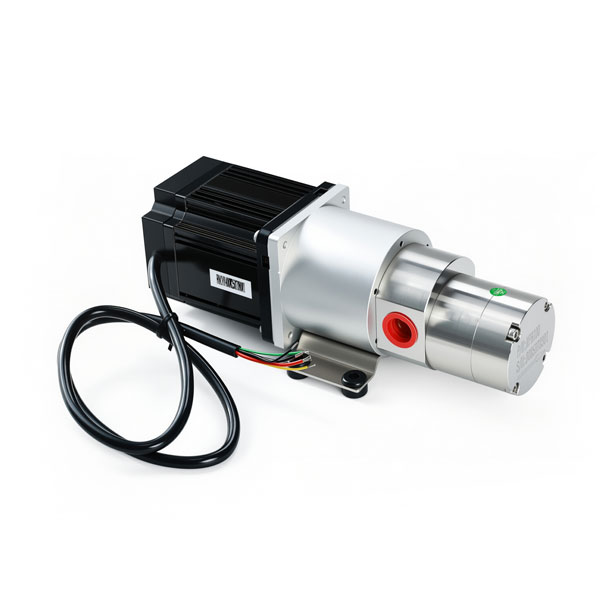

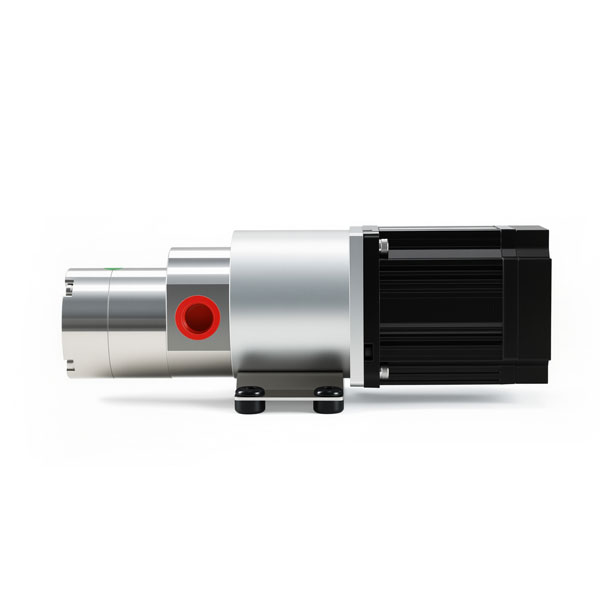

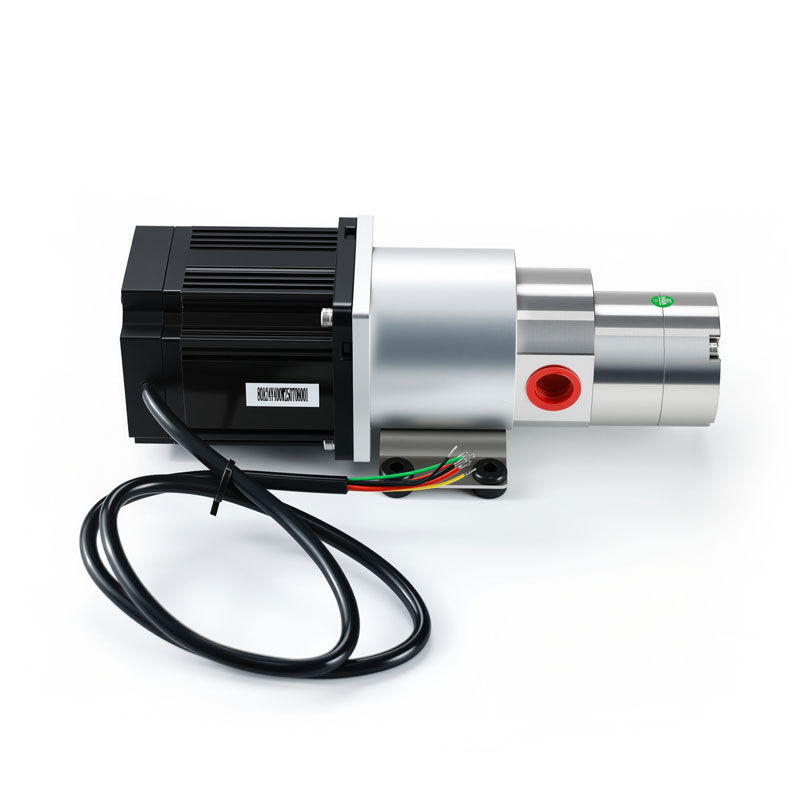

1.MPB100 (3.6ml/rev),flow rate 0.5-12L/min.
2.MPB150 (5.4ml/rev) ,flow rate 0.5-16L/min.

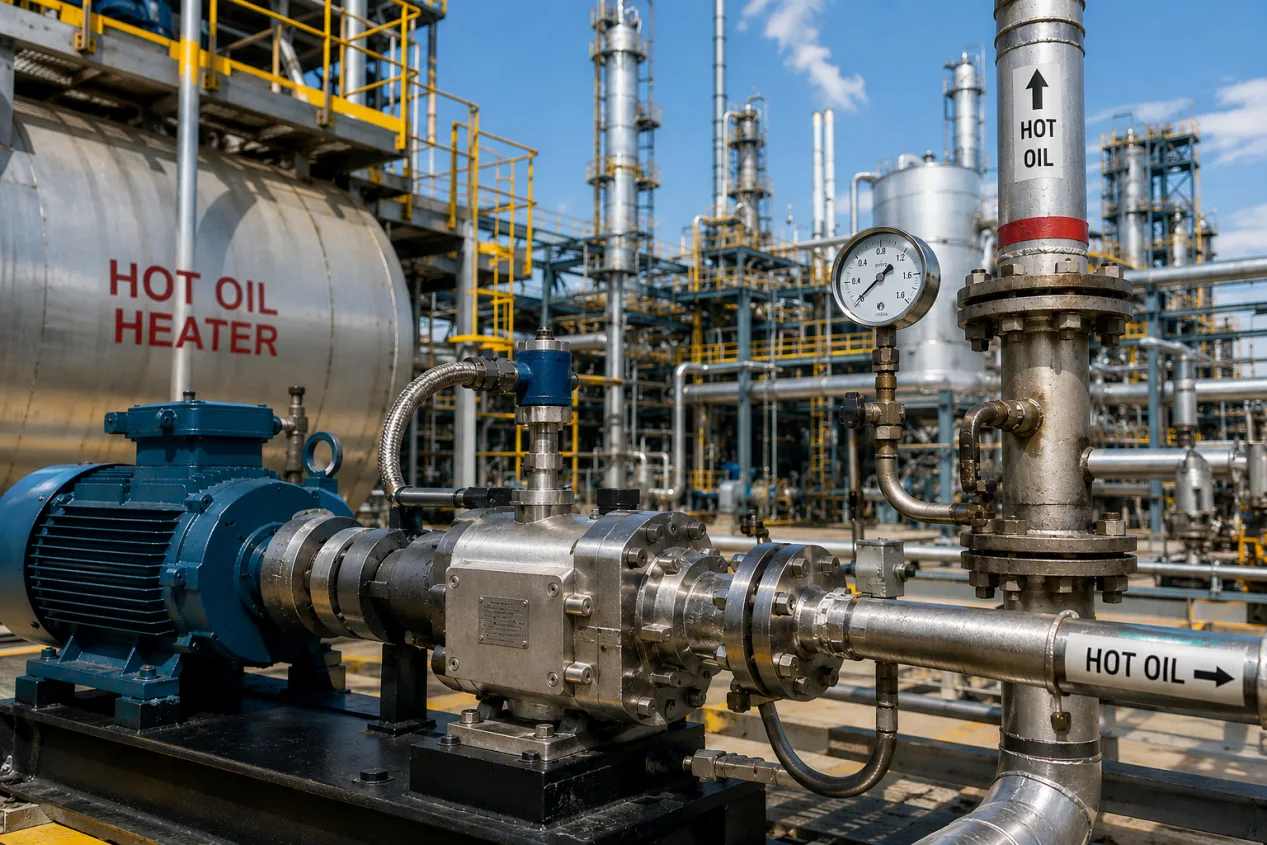

Application Scenarios
| Parameter | Specification |
| Displacement per revolution | 3.6ml/rev，5.4ml/rev |
| Flow range | 0.5-12L/min，0.5-16L/min， |
| Inlet-outlet pressure differential | 10bar max |
| Pump body pressure resistance | 40 bar |
| Medium temperature | 30～70℃ |
| Inlet & outlet thread | G1/8 and G1/4 |
| Motor type | Explosion-Proof Brushless DC motor |
| Motor voltage | DC24V |
| Motor current | 7.5A or 12A |
| Drive mode | External drive |
| Speed regulation mode | PWM and 0-5V control |
